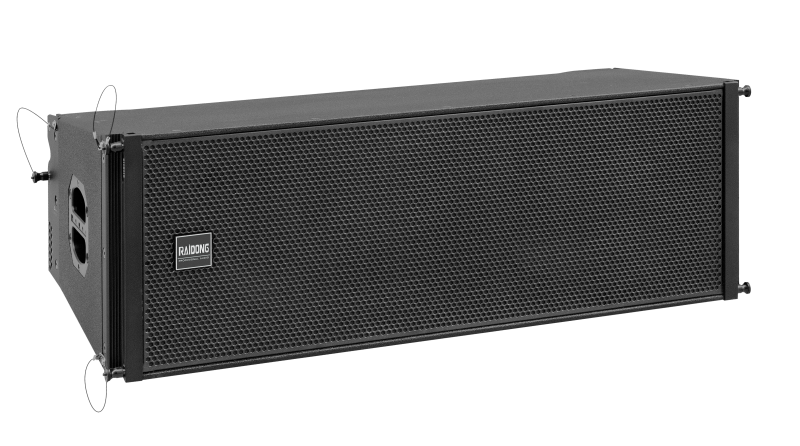

MODEL: DF-212
Bars, lecture halls, banquet halls, mobile performances, sound reinforcement in stadiums
- DF-212 is a medium-sized, accurate coverage angle of the line array speaker, it has a large sound pressure level, the application of low distortion mid-woofer, high-quality driver with a special waveguide diffuser and horn, in the effective frequency range, accurate and uniform coverage, the hanging system is made of aluminum alloy material, aluminum alloy handle, humanized hanging installation design can ensure that the whole system installation is safe and fast to complete. The cabinet is made of multi-layer composite plywood with black wear-resistant black gold sand paint.
- DF-212 can be customized as an all-weather waterproof speaker according to the requirements of the use.
| System type： | Dual 12-inch two-way line array loudspeakersway full-range speaker |
| Frequency response(±3dB): | 58Hz-19kHz |
| Sensitivity(1m/1w) : | 119dB |
| Maximum Spl@1M: | 133 dB |
| Power(RMS/Continous): | Continuous/1000W, Peak/4000 W |
| Impedance: | 8 ohms |
| Coverage（H*V）: | 90°x13°(H x V) |
| The bass unit（LF）: | 2 x 12 inches |
| High unit（HF）: | 1 x 3″ (75 cores) |
| Input connector: | 2 x NL4MP |
| Wight（net）： | 46.5KG |
| Plate： | 15mm multi-layer plywood |
| Surface treatment： | Black abrasion-resistant black gold sand paint |
| Speaker measurement： | 946×460×356mm（WDH） |
